FSD整体硬质合金平底钻头

FSD-SE

FSD 整体硬质合金平底钻头

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为m7，柄部公差为h6。

3、刀尖顶角为180°，刀尖形式及排屑槽形式为特殊设计，定心效果好，排屑通畅，在斜面钻孔、圆弧面钻孔、薄板钻孔和抑制出口毛刺等方面都有很好的表现。

  • 产品特色
  • 产品尺寸
  • 加工视频

FSD系列高性能平底钻头

多场合适用


产品特点:

□ 刀尖顶尖设计为180°。

□ 刀尖形式及排屑槽形式为特殊设计，定心效果好，排屑通畅。

□ 一把刀具可实现多种用途，在斜面钻孔、圆弧面钻孔、薄板钻孔和抑制出口毛刺等方面都有很好的表现。

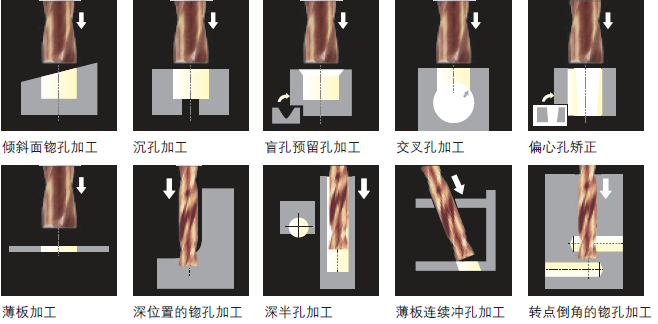

应用场合:



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FSD-SE

◎ ◎ ◎ ◎ ◎ ○ ○ ○ ○

○

○


(◎ 最适合  ○ 适合)


尺寸范围：

D=3.00~20.00mm

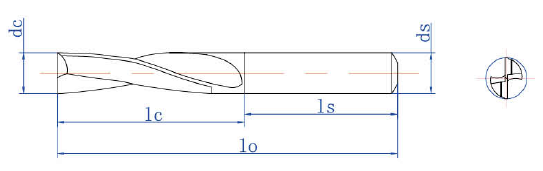

基准型订货号(涂层） 刃径 槽长 柄径 柄长 总长
dc  lc  ds  ls  lo
FSD0300SE 3.00 16 4 28 49
FSD0310SE 3.10 16 4 28 49
FSD0320SE 3.20 16 4 28 49
FSD0330SE 3.30 16 4 28 49
FSD0340SE 3.40 16 4 28 49
FSD0350SE 3.50 16 4 28 49
FSD0360SE 3.60 16 4 28 49
FSD0370SE 3.70 16 4 28 49
FSD0380SE 3.80 16 4 28 49
FSD0390SE 3.90 16 4 28 49
FSD0400SE 4.00 16 4 28 49
FSD0410SE 4.10 20 6 36 61
FSD0420SE 4.20 20 6 36 61
FSD0430SE 4.30 20 6 36 61
FSD0440SE 4.40 20 6 36 61
FSD0450SE 4.50 20 6 36 61
FSD0460SE 4.60 20 6 36 61
FSD0470SE 4.70 20 6 36 61
FSD0480SE 4.80 20 6 36 61
FSD0490SE 4.90 20 6 36 61
FSD0500SE 5.00 20 6 36 61
FSD0510SE 5.10 24 6 36 65
FSD0520SE 5.20 24 6 36 65
FSD0530SE 5.30 24 6 36 65
FSD0540SE 5.40 24 6 36 65
FSD0550SE 5.50 24 6 36 65
FSD0560SE 5.60 24 6 36 65
FSD0570SE 5.70 24 6 36 65
FSD0580SE 5.80 24 6 36 65
FSD0590SE 5.90 24 6 36 65
FSD0600SE 6.00 24 6 36 65
FSD0610SE 6.10 28 8 36 69
FSD0620SE 6.20 28 8 36 69
FSD0630SE 6.30 28 8 36 69
FSD0640SE 6.40 28 8 36 69
FSD0650SE 6.50 28 8 36 69
FSD0660SE 6.60 28 8 36 69
FSD0670SE 6.70 28 8 36 69
FSD0680SE 6.80 28 8 36 69
FSD0690SE 6.90 28 8 36 69
FSD0700SE 7.00 28 8 36 69
FSD0710SE 7.10 32 8 36 73
FSD0720SE 7.20 32 8 36 73
FSD0730SE 7.30 32 8 36 73
FSD0740SE 7.40 32 8 36 73
FSD0750SE 7.50 32 8 36 73
FSD0760SE 7.60 32 8 36 73
FSD0770SE 7.70 32 8 36 73
FSD0780SE 7.80 32 8 36 73
FSD0790SE 7.90 32 8 36 73
FSD0800SE 8.00 32 8 36 73
FSD0810SE 8.10 36 10 40 81
FSD0820SE 8.20 36 10 40 81
FSD0830SE 8.30 36 10 40 81
FSD0840SE 8.40 36 10 40 81
FSD0850SE 8.50 36 10 40 81
FSD0860SE 8.60 36 10 40 81
FSD0870SE 8.70 36 10 40 81
FSD0880SE 8.80 36 10 40 81
FSD0890SE 8.90 36 10 40 81
FSD0900SE 9.00 36 10 40 81
FSD0910SE 9.30 40 10 40 85
FSD0920SE 9.30 40 10 40 85
FSD0930SE 9.30 40 10 40 85
FSD0940SE 9.40 40 10 40 85
FSD0950SE 9.50 40 10 40 85
FSD0960SE 9.60 40 10 40 85
FSD0970SE 9.70 40 10 40 85
FSD0980SE 9.80 40 10 40 85
FSD0990SE 9.90 40 10 40 85
FSD1000SE 10.00 40 10 40 85
FSD1010SE 10.10 44 12 45 94
FSD1020SE 10.20 44 12 45 94
FSD1030SE 10.30 44 12 45 94
FSD1040SE 10.40 44 12 45 94
FSD1050SE 10.50 44 12 45 94
FSD1060SE 10.60 44 12 45 94
FSD1070SE 10.70 44 12 45 94
FSD1080SE 10.80 44 12 45 94
FSD1090SE 10.90 44 12 45 94
FSD1100SE 11.00 44 12 45 94
FSD1110SE 11.10 48 12 45 98
FSD1120SE 11.20 48 12 45 98
FSD1130SE 11.30 48 12 45 98
FSD1140SE 11.40 48 12 45 98
FSD1150SE 11.50 48 12 45 98
FSD1160SE 11.60 48 12 45 98
FSD1170SE 11.70 48 12 45 98
FSD1180SE 11.80 48 12 45 98
FSD1190SE 11.90 48 12 45 98
FSD1200SE 12.00 48 12 45 98
FSD1210SE 12.10 52 14 45 102
FSD1220SE 12.20 52 14 45 102
FSD1230SE 12.30 52 14 45 102
FSD1240SE 12.40 52 14 45 102
FSD1250SE 12.50 52 14 45 102
FSD1260SE 12.60 52 14 45 102
FSD1270SE 12.70 52 14 45 102
FSD1280SE 12.80 52 14 45 102
FSD1290SE 12.90 52 14 45 102
FSD1300SE 13.00 52 14 45 102
FSD1310SE 13.10 56 14 45 106
FSD1320SE 13.20 56 14 45 106
FSD1330SE 13.30 56 14 45 106
FSD1340SE 13.40 56 14 45 106
FSD1350SE 13.50 56 14 45 106
FSD1360SE 13.60 56 14 45 106
FSD1370SE 13.70 56 14 45 106
FSD1380SE 13.80 56 14 45 106
FSD1390SE 13.90 56 14 45 106
FSD1400SE 14.00 56 14 45 106
FSD1410SE 14.10 60 16 48 113
FSD1420SE 14.20 60 16 48 113
FSD1430SE 14.30 60 16 48 113
FSD1440SE 14.40 60 16 48 113
FSD1450SE 14.50 60 16 48 113
FSD1460SE 14.60 60 16 48 113
FSD1470SE 14.70 60 16 48 113
FSD1480SE 14.80 60 16 48 113
FSD1490SE 14.90 60 16 48 113
FSD1500SE 15.00 60 16 48 113
FSD1510SE 15.10 64 16 48 117
FSD1520SE 15.20 64 16 48 117
FSD1530SE 15.30 64 16 48 117
FSD1540SE 15.40 64 16 48 117
FSD1550SE 15.50 64 16 48 117
FSD1560SE 15.60 64 16 48 117
FSD1570SE 15.70 64 16 48 117
FSD1580SE 15.80 64 16 48 117
FSD1590SE 15.90 64 16 48 117
FSD1600SE 16.00 64 16 48 117
FSD1610SE 16.10 68 18 48 121
FSD1620SE 16.20 68 18 48 121
FSD1630SE 16.30 68 18 48 121
FSD1640SE 16.40 68 18 48 121
FSD1650SE 16.50 68 18 48 121
FSD1660SE 16.60 68 18 48 121
FSD1670SE 16.70 68 18 48 121
FSD1680SE 16.80 68 18 48 121
FSD1690SE 16.90 68 18 48 121
FSD1700SE 17.00 68 18 48 121
FSD1710SE 17.10 72 18 48 125
FSD1720SE 17.20 72 18 48 125
FSD1730SE 17.30 72 18 48 125
FSD1740SE 17.40 72 18 48 125
FSD1750SE 17.50 72 18 48 125
FSD1760SE 17.60 72 18 48 125
FSD1770SE 17.70 72 18 48 125
FSD1780SE 17.80 72 18 48 125
FSD1790SE 17.90 72 18 48 125
FSD1800SE 18.00 72 18 48 125
FSD1810SE 18.10 76 20 50 131
FSD1820SE 18.20 76 20 50 131
FSD1830SE 18.30 76 20 50 131
FSD1840SE 18.40 76 20 50 131
FSD1850SE 18.50 76 20 50 131
FSD1860SE 18.60 76 20 50 131
FSD1870SE 18.70 76 20 50 131
FSD1880SE 18.80 76 20 50 131
FSD1890SE 18.90 76 20 50 131
FSD1900SE 19.00 76 20 50 131
FSD1910SE 19.10 80 20 50 135
FSD1920SE 19.20 80 20 50 135
FSD1930SE 19.30 80 20 50 135
FSD1940SE 19.40 80 20 50 135
FSD1950SE 19.50 80 20 50 135
FSD1960SE 19.60 80 20 50 135
FSD1970SE 19.70 80 20 50 135
FSD1980SE 19.80 80 20 50 135
FSD1990SE 19.90 80 20 50 135
FSD2000SE 20.00 80 20 50 135
