FD铸铁加工用直槽钻头

5FD-SE

FD 整体硬质铸铁用直槽钻头5×D 高性能型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为M7，柄部公差为H6。

3、刀尖顶角、刀尖形式、排屑槽均针对各系列的加工特点分别设计，确保达到最优的加工效果。

  • 产品特色
  • 产品尺寸
  • 加工视频

FD系列整硬直槽钻头

铝用无涂层/铸铁用有涂层



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最适合  ○ 适合)




可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷



尺寸范围：

D=2.00~20.00mm

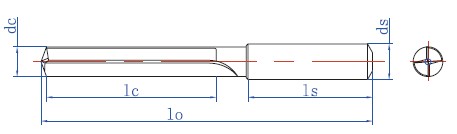

高性能型订货号 刃径 槽长 柄径 柄长 总长
SE系列（铸铁用有涂层） dc  lc  ds  ls  lo
5FD0300SE 3.00 24 4 28 57
5FD0310SE 3.10 24 4 28 57
5FD0320SE 3.20 24 4 28 57
5FD0330SE 3.30 24 4 28 57
5FD0340SE 3.40 24 4 28 57
5FD0350SE 3.50 24 4 28 57
5FD0360SE 3.60 24 4 28 57
5FD0370SE 3.70 24 4 28 57
5FD0380SE 3.80 24 4 28 57
5FD0390SE 3.90 24 4 28 57
5FD0400SE 4.00 24 4 28 57
5FD0410SE 4.10 30 6 36 71
5FD0420SE 4.20 30 6 36 71
5FD0430SE 4.30 30 6 36 71
5FD0440SE 4.40 30 6 36 71
5FD0450SE 4.50 30 6 36 71
5FD0460SE 4.60 30 6 36 71
5FD0470SE 4.70 30 6 36 71
5FD0480SE 4.80 30 6 36 71
5FD0490SE 4.90 30 6 36 71
5FD0500SE 5.00 30 6 36 71
5FD0510SE 5.10 36 6 36 77
5FD0520SE 5.20 36 6 36 77
5FD0530SE 5.30 36 6 36 77
5FD0540SE 5.40 36 6 36 77
5FD0550SE 5.50 36 6 36 77
5FD0560SE 5.60 36 6 36 77
5FD0570SE 5.70 36 6 36 77
5FD0580SE 5.80 36 6 36 77
5FD0590SE 5.90 36 6 36 77
5FD0600SE 6.00 36 6 36 77
5FD0610SE 6.10 42 8 36 83
5FD0620SE 6.20 42 8 36 83
5FD0630SE 6.30 42 8 36 83
5FD0640SE 6.40 42 8 36 83
5FD0650SE 6.50 42 8 36 83
5FD0660SE 6.60 42 8 36 83
5FD0670SE 6.70 42 8 36 83
5FD0680SE 6.80 42 8 36 83
5FD0690SE 6.90 42 8 36 83
5FD0700SE 7.00 42 8 36 83
5FD0710SE 7.10 48 8 36 89
5FD0720SE 7.20 48 8 36 89
5FD0730SE 7.30 48 8 36 89
5FD0740SE 7.40 48 8 36 89
5FD0750SE 7.50 48 8 36 89
5FD0760SE 7.60 48 8 36 89
5FD0770SE 7.70 48 8 36 89
5FD0780SE 7.80 48 8 36 89
5FD0790SE 7.90 48 8 36 89
5FD0800SE 8.00 48 8 36 89
5FD0810SE 8.10 54 10 40 99
5FD0820SE 8.20 54 10 40 99
5FD0830SE 8.30 54 10 40 99
5FD0840SE 8.40 54 10 40 99
5FD0850SE 8.50 54 10 40 99
5FD0860SE 8.60 54 10 40 99
5FD0870SE 8.70 54 10 40 99
5FD0880SE 8.80 54 10 40 99
5FD0890SE 8.90 54 10 40 99
5FD0900SE 9.00 54 10 40 99
5FD0910SE 9.10 60 10 40 105
5FD0920SE 9.20 60 10 40 105
5FD0930SE 9.30 60 10 40 105
5FD0940SE 9.40 60 10 40 105
5FD0950SE 9.50 60 10 40 105
5FD0960SE 9.60 60 10 40 105
5FD0970SE 9.70 60 10 40 105
5FD0980SE 9.80 60 10 40 105
5FD0990SE 9.90 60 10 40 105
5FD1000SE 10.00 60 10 40 105
5FD1010SE 10.10 66 12 45 116
5FD1020SE 10.20 66 12 45 116
5FD1030SE 10.30 66 12 45 116
5FD1040SE 10.40 66 12 45 116
5FD1050SE 10.50 66 12 45 116
5FD1060SE 10.60 66 12 45 116
5FD1070SE 10.70 66 12 45 116
5FD1080SE 10.80 66 12 45 116
5FD1090SE 10.90 66 12 45 116
5FD1100SE 11.00 66 12 45 116
5FD1110SE 11.10 72 12 45 122
5FD1120SE 11.20 72 12 45 122
5FD1130SE 11.30 72 12 45 122
5FD1140SE 11.40 72 12 45 122
5FD1150SE 11.50 72 12 45 122
5FD1160SE 11.60 72 12 45 122
5FD1170SE 11.70 72 12 45 122
5FD1180SE 11.80 72 12 45 122
5FD1190SE 11.90 72 12 45 122
5FD1200SE 12.00 72 12 45 122
5FD1210SE 12.10 78 14 45 128
5FD1220SE 12.20 78 14 45 128
5FD1230SE 12.30 78 14 45 128
5FD1240SE 12.40 78 14 45 128
5FD1250SE 12.50 78 14 45 128
5FD1260SE 12.60 78 14 45 128
5FD1270SE 12.70 78 14 45 128
5FD1280SE 12.80 78 14 45 128
5FD1290SE 12.90 78 14 45 128
5FD1300SE 13.00 78 14 45 128
5FD1310SE 13.10 84 14 45 134
5FD1320SE 13.20 84 14 45 134
5FD1330SE 13.30 84 14 45 134
5FD1340SE 13.40 84 14 45 134
5FD1350SE 13.50 84 14 45 134
5FD1360SE 13.60 84 14 45 134
5FD1370SE 13.70 84 14 45 134
5FD1380SE 13.80 84 14 45 134
5FD1390SE 13.90 84 14 45 134
5FD1400SE 14.00 84 14 45 134
5FD1410SE 14.10 90 16 48 143
5FD1420SE 14.20 90 16 48 143
5FD1430SE 14.30 90 16 48 143
5FD1440SE 14.40 90 16 48 143
5FD1450SE 14.50 90 16 48 143
5FD1460SE 14.60 90 16 48 143
5FD1470SE 14.70 90 16 48 143
5FD1480SE 14.80 90 16 48 143
5FD1490SE 14.90 90 16 48 143
5FD1500SE 15.00 90 16 48 143
5FD1510SE 15.10 96 16 48 149
5FD1520SE 15.20 96 16 48 149
5FD1530SE 15.30 96 16 48 149
5FD1540SE 15.40 96 16 48 149
5FD1550SE 15.50 96 16 48 149
5FD1560SE 15.60 96 16 48 149
5FD1570SE 15.70 96 16 48 149
5FD1580SE 15.80 96 16 48 149
5FD1590SE 15.90 96 16 48 149
5FD1600SE 16.00 96 16 48 149
5FD1610SE 16.10 102 18 48 155
5FD1620SE 16.20 102 18 48 155
5FD1630SE 16.30 102 18 48 155
5FD1640SE 16.40 102 18 48 155
5FD1650SE 16.50 102 18 48 155
5FD1660SE 16.60 102 18 48 155
5FD1670SE 16.70 102 18 48 155
5FD1680SE 16.80 102 18 48 155
5FD1690SE 16.90 102 18 48 155
5FD1700SE 17.00 102 18 48 155
5FD1710SE 17.10 108 18 48 161
5FD1720SE 17.20 108 18 48 161
5FD1730SE 17.30 108 18 48 161
5FD1740SE 17.40 108 18 48 161
5FD1750SE 17.50 108 18 48 161
5FD1760SE 17.60 108 18 48 161
5FD1770SE 17.70 108 18 48 161
5FD1780SE 17.80 108 18 48 161
5FD1790SE 17.90 108 18 48 161
5FD1800SE 18.00 108 18 48 161
5FD1810SE 18.10 114 20 50 169
5FD1820SE 18.20 114 20 50 169
5FD1830SE 18.30 114 20 50 169
5FD1840SE 18.40 114 20 50 169
5FD1850SE 18.50 114 20 50 169
5FD1860SE 18.60 114 20 50 169
5FD1870SE 18.70 114 20 50 169
5FD1880SE 18.80 114 20 50 169
5FD1890SE 18.90 114 20 50 169
5FD1900SE 19.00 114 20 50 169
5FD1910SE 19.10 120 20 50 175
5FD1920SE 19.20 120 20 50 175
5FD1930SE 19.30 120 20 50 175
5FD1940SE 19.40 120 20 50 175
5FD1950SE 19.50 120 20 50 175
5FD1960SE 19.60 120 20 50 175
5FD1970SE 19.70 120 20 50 175
5FD1980SE 19.80 120 20 50 175
5FD1990SE 19.90 120 20 50 175
5FD2000SE 20.00 120 20 50 175
