FD铸铁加工用直槽钻头

3FD-SE

FD 整体硬质铸铁用直槽钻头3×D 高性能型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为M7，柄部公差为H6。

3、刀尖顶角、刀尖形式、排屑槽均针对各系列的加工特点分别设计，确保达到最优的加工效果。

  • 产品特色
  • 产品尺寸
  • 加工视频

FD系列整硬直槽钻头

铝用无涂层/铸铁用有涂层



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最适合  ○ 适合)




可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷



尺寸范围：

D=2.00~20.00mm

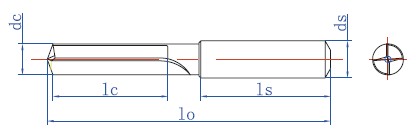

高性能型订货号 刃径 槽长 柄径 柄长 总长
SE系列（铸铁用有涂层） dc  lc  ds  ls  lo
3FD0300SE 3.00 16 4 28 49
3FD0310SE 3.10 16 4 28 49
3FD0320SE 3.20 16 4 28 49
3FD0330SE 3.30 16 4 28 49
3FD0340SE 3.40 16 4 28 49
3FD0350SE 3.50 16 4 28 49
3FD0360SE 3.60 16 4 28 49
3FD0370SE 3.70 16 4 28 49
3FD0380SE 3.80 16 4 28 49
3FD0390SE 3.90 16 4 28 49
3FD0400SE 4.00 16 4 28 49
3FD0410SE 4.10 20 6 36 61
3FD0420SE 4.20 20 6 36 61
3FD0430SE 4.30 20 6 36 61
3FD0440SE 4.40 20 6 36 61
3FD0450SE 4.50 20 6 36 61
3FD0460SE 4.60 20 6 36 61
3FD0470SE 4.70 20 6 36 61
3FD0480SE 4.80 20 6 36 61
3FD0490SE 4.90 20 6 36 61
3FD0500SE 5.00 20 6 36 61
3FD0510SE 5.10 24 6 36 65
3FD0520SE 5.20 24 6 36 65
3FD0530SE 5.30 24 6 36 65
3FD0540SE 5.40 24 6 36 65
3FD0550SE 5.50 24 6 36 65
3FD0560SE 5.60 24 6 36 65
3FD0570SE 5.70 24 6 36 65
3FD0580SE 5.80 24 6 36 65
3FD0590SE 5.90 24 6 36 65
3FD0600SE 6.00 24 6 36 65
3FD0610SE 6.10 28 8 36 69
3FD0620SE 6.20 28 8 36 69
3FD0630SE 6.30 28 8 36 69
3FD0640SE 6.40 28 8 36 69
3FD0650SE 6.50 28 8 36 69
3FD0660SE 6.60 28 8 36 69
3FD0670SE 6.70 28 8 36 69
3FD0680SE 6.80 28 8 36 69
3FD0690SE 6.90 28 8 36 69
3FD0700SE 7.00 28 8 36 69
3FD0710SE 7.10 32 8 36 73
3FD0720SE 7.20 32 8 36 73
3FD0730SE 7.30 32 8 36 73
3FD0740SE 7.40 32 8 36 73
3FD0750SE 7.50 32 8 36 73
3FD0760SE 7.60 32 8 36 73
3FD0770SE 7.70 32 8 36 73
3FD0780SE 7.80 32 8 36 73
3FD0790SE 7.90 32 8 36 73
3FD0800SE 8.00 32 8 36 73
3FD0810SE 8.10 36 10 40 81
3FD0820SE 8.20 36 10 40 81
3FD0830SE 8.30 36 10 40 81
3FD0840SE 8.40 36 10 40 81
3FD0850SE 8.50 36 10 40 81
3FD0860SE 8.60 36 10 40 81
3FD0870SE 8.70 36 10 40 81
3FD0880SE 8.80 36 10 40 81
3FD0890SE 8.90 36 10 40 81
3FD0900SE 9.00 36 10 40 81
3FD0910SE 9.10 40 10 40 85
3FD0920SE 9.20 40 10 40 85
3FD0930SE 9.30 40 10 40 85
3FD0940SE 9.40 40 10 40 85
3FD0950SE 9.50 40 10 40 85
3FD0960SE 9.60 40 10 40 85
3FD0970SE 9.70 40 10 40 85
3FD0980SE 9.80 40 10 40 85
3FD0990SE 9.90 40 10 40 85
3FD1000SE 10.00 40 10 40 85
3FD1010SE 10.10 44 12 45 94
3FD1020SE 10.20 44 12 45 94
3FD1030SE 10.30 44 12 45 94
3FD1040SE 10.40 44 12 45 94
3FD1050SE 10.50 44 12 45 94
3FD1060SE 10.60 44 12 45 94
3FD1070SE 10.70 44 12 45 94
3FD1080SE 10.80 44 12 45 94
3FD1090SE 10.90 44 12 45 94
3FD1100SE 11.00 44 12 45 94
3FD1110SE 11.10 48 12 45 98
3FD1120SE 11.20 48 12 45 98
3FD1130SE 11.30 48 12 45 98
3FD1140SE 11.40 48 12 45 98
3FD1150SE 11.50 48 12 45 98
3FD1160SE 11.60 48 12 45 98
3FD1170SE 11.70 48 12 45 98
3FD1180SE 11.80 48 12 45 98
3FD1190SE 11.90 48 12 45 98
3FD1200SE 12.00 48 12 45 98
3FD1210SE 12.10 52 14 45 102
3FD1220SE 12.20 52 14 45 102
3FD1230SE 12.30 52 14 45 102
3FD1240SE 12.40 52 14 45 102
3FD1250SE 12.50 52 14 45 102
3FD1260SE 12.60 52 14 45 102
3FD1270SE 12.70 52 14 45 102
3FD1280SE 12.80 52 14 45 102
3FD1290SE 12.90 52 14 45 102
3FD1300SE 13.00 52 14 45 102
3FD1310SE 13.10 56 14 45 106
3FD1320SE 13.20 56 14 45 106
3FD1330SE 13.30 56 14 45 106
3FD1340SE 13.40 56 14 45 106
3FD1350SE 13.50 56 14 45 106
3FD1360SE 13.60 56 14 45 106
3FD1370SE 13.70 56 14 45 106
3FD1380SE 13.80 56 14 45 106
3FD1390SE 13.90 56 14 45 106
3FD1400SE 14.00 56 14 45 106
3FD1410SE 14.10 60 16 48 113
3FD1420SE 14.20 60 16 48 113
3FD1430SE 14.30 60 16 48 113
3FD1440SE 14.40 60 16 48 113
3FD1450SE 14.50 60 16 48 113
3FD1460SE 14.60 60 16 48 113
3FD1470SE 14.70 60 16 48 113
3FD1480SE 14.80 60 16 48 113
3FD1490SE 14.90 60 16 48 113
3FD1500SE 15.00 60 16 48 113
3FD1510SE 15.10 64 16 48 117
3FD1520SE 15.20 64 16 48 117
3FD1530SE 15.30 64 16 48 117
3FD1540SE 15.40 64 16 48 117
3FD1550SE 15.50 64 16 48 117
3FD1560SE 15.60 64 16 48 117
3FD1570SE 15.70 64 16 48 117
3FD1580SE 15.80 64 16 48 117
3FD1590SE 15.90 64 16 48 117
3FD1600SE 16.00 64 16 48 117
3FD1610SE 16.10 68 18 48 121
3FD1620SE 16.20 68 18 48 121
3FD1630SE 16.30 68 18 48 121
3FD1640SE 16.40 68 18 48 121
3FD1650SE 16.50 68 18 48 121
3FD1660SE 16.60 68 18 48 121
3FD1670SE 16.70 68 18 48 121
3FD1680SE 16.80 68 18 48 121
3FD1690SE 16.90 68 18 48 121
3FD1700SE 17.00 68 18 48 121
3FD1710SE 17.10 72 18 48 125
3FD1720SE 17.20 72 18 48 125
3FD1730SE 17.30 72 18 48 125
3FD1740SE 17.40 72 18 48 125
3FD1750SE 17.50 72 18 48 125
3FD1760SE 17.60 72 18 48 125
3FD1770SE 17.70 72 18 48 125
3FD1780SE 17.80 72 18 48 125
3FD1790SE 17.90 72 18 48 125
3FD1800SE 18.00 72 18 48 125
3FD1810SE 18.10 76 20 50 131
3FD1820SE 18.20 76 20 50 131
3FD1830SE 18.30 76 20 50 131
3FD1840SE 18.40 76 20 50 131
3FD1850SE 18.50 76 20 50 131
3FD1860SE 18.60 76 20 50 131
3FD1870SE 18.70 76 20 50 131
3FD1880SE 18.80 76 20 50 131
3FD1890SE 18.90 76 20 50 131
3FD1900SE 19.00 76 20 50 131
3FD1910SE 19.10 80 20 50 135
3FD1920SE 19.20 80 20 50 135
3FD1930SE 19.30 80 20 50 135
3FD1940SE 19.40 80 20 50 135
3FD1950SE 19.50 80 20 50 135
3FD1960SE 19.60 80 20 50 135
3FD1970SE 19.70 80 20 50 135
3FD1980SE 19.80 80 20 50 135
3FD1990SE 19.90 80 20 50 135
3FD2000SE 20.00 80 20 50 135
