FD铸铁加工用直槽钻头

O3FD-SE

FD 内冷整体硬质铸铁用直槽钻头3×D 高性能型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为M7，柄部公差为H6。

3、刀尖顶角、刀尖形式、排屑槽均针对各系列的加工特点分别设计，确保达到最优的加工效果。

  • 产品特色
  • 产品尺寸
  • 加工视频

FD系列整硬直槽钻头

铝用无涂层/铸铁用有涂层



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最适合  ○ 适合)




可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷



尺寸范围：

D=2.00~20.00mm

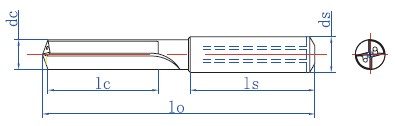

高性能型订货号 刃径 槽长 柄径 柄长 总长
SE系列（铸铁用有涂层） dc  lc  ds  ls  lo
O3FD0300SE 3.00 16 4 28 49
O3FD0310SE 3.10 16 4 28 49
O3FD0320SE 3.20 16 4 28 49
O3FD0330SE 3.30 16 4 28 49
O3FD0340SE 3.40 16 4 28 49
O3FD0350SE 3.50 16 4 28 49
O3FD0360SE 3.60 16 4 28 49
O3FD0370SE 3.70 16 4 28 49
O3FD0380SE 3.80 16 4 28 49
O3FD0390SE 3.90 16 4 28 49
O3FD0400SE 4.00 16 4 28 49
O3FD0410SE 4.10 20 6 36 61
O3FD0420SE 4.20 20 6 36 61
O3FD0430SE 4.30 20 6 36 61
O3FD0440SE 4.40 20 6 36 61
O3FD0450SE 4.50 20 6 36 61
O3FD0460SE 4.60 20 6 36 61
O3FD0470SE 4.70 20 6 36 61
O3FD0480SE 4.80 20 6 36 61
O3FD0490SE 4.90 20 6 36 61
O3FD0500SE 5.00 20 6 36 61
O3FD0510SE 5.10 24 6 36 65
O3FD0520SE 5.20 24 6 36 65
O3FD0530SE 5.30 24 6 36 65
O3FD0540SE 5.40 24 6 36 65
O3FD0550SE 5.50 24 6 36 65
O3FD0560SE 5.60 24 6 36 65
O3FD0570SE 5.70 24 6 36 65
O3FD0580SE 5.80 24 6 36 65
O3FD0590SE 5.90 24 6 36 65
O3FD0600SE 6.00 24 6 36 65
O3FD0610SE 6.10 28 8 36 69
O3FD0620SE 6.20 28 8 36 69
O3FD0630SE 6.30 28 8 36 69
O3FD0640SE 6.40 28 8 36 69
O3FD0650SE 6.50 28 8 36 69
O3FD0660SE 6.60 28 8 36 69
O3FD0670SE 6.70 28 8 36 69
O3FD0680SE 6.80 28 8 36 69
O3FD0690SE 6.90 28 8 36 69
O3FD0700SE 7.00 28 8 36 69
O3FD0710SE 7.10 32 8 36 73
O3FD0720SE 7.20 32 8 36 73
O3FD0730SE 7.30 32 8 36 73
O3FD0740SE 7.40 32 8 36 73
O3FD0750SE 7.50 32 8 36 73
O3FD0760SE 7.60 32 8 36 73
O3FD0770SE 7.70 32 8 36 73
O3FD0780SE 7.80 32 8 36 73
O3FD0790SE 7.90 32 8 36 73
O3FD0800SE 8.00 32 8 36 73
O3FD0810SE 8.10 36 10 40 81
O3FD0820SE 8.20 36 10 40 81
O3FD0830SE 8.30 36 10 40 81
O3FD0840SE 8.40 36 10 40 81
O3FD0850SE 8.50 36 10 40 81
O3FD0860SE 8.60 36 10 40 81
O3FD0870SE 8.70 36 10 40 81
O3FD0880SE 8.80 36 10 40 81
O3FD0890SE 8.90 36 10 40 81
O3FD0900SE 9.00 36 10 40 81
O3FD0910SE 9.10 40 10 40 85
O3FD0920SE 9.20 40 10 40 85
O3FD0930SE 9.30 40 10 40 85
O3FD0940SE 9.40 40 10 40 85
O3FD0950SE 9.50 40 10 40 85
O3FD0960SE 9.60 40 10 40 85
O3FD0970SE 9.70 40 10 40 85
O3FD0980SE 9.80 40 10 40 85
O3FD0990SE 9.90 40 10 40 85
O3FD1000SE 10.00 40 10 40 85
O3FD1010SE 10.10 44 12 45 94
O3FD1020SE 10.20 44 12 45 94
O3FD1030SE 10.30 44 12 45 94
O3FD1040SE 10.40 44 12 45 94
O3FD1050SE 10.50 44 12 45 94
O3FD1060SE 10.60 44 12 45 94
O3FD1070SE 10.70 44 12 45 94
O3FD1080SE 10.80 44 12 45 94
O3FD1090SE 10.90 44 12 45 94
O3FD1100SE 11.00 44 12 45 94
O3FD1110SE 11.10 48 12 45 98
O3FD1120SE 11.20 48 12 45 98
O3FD1130SE 11.30 48 12 45 98
O3FD1140SE 11.40 48 12 45 98
O3FD1150SE 11.50 48 12 45 98
O3FD1160SE 11.60 48 12 45 98
O3FD1170SE 11.70 48 12 45 98
O3FD1180SE 11.80 48 12 45 98
O3FD1190SE 11.90 48 12 45 98
O3FD1200SE 12.00 48 12 45 98
O3FD1210SE 12.10 52 14 45 102
O3FD1220SE 12.20 52 14 45 102
O3FD1230SE 12.30 52 14 45 102
O3FD1240SE 12.40 52 14 45 102
O3FD1250SE 12.50 52 14 45 102
O3FD1260SE 12.60 52 14 45 102
O3FD1270SE 12.70 52 14 45 102
O3FD1280SE 12.80 52 14 45 102
O3FD1290SE 12.90 52 14 45 102
O3FD1300SE 13.00 52 14 45 102
O3FD1310SE 13.10 56 14 45 106
O3FD1320SE 13.20 56 14 45 106
O3FD1330SE 13.30 56 14 45 106
O3FD1340SE 13.40 56 14 45 106
O3FD1350SE 13.50 56 14 45 106
O3FD1360SE 13.60 56 14 45 106
O3FD1370SE 13.70 56 14 45 106
O3FD1380SE 13.80 56 14 45 106
O3FD1390SE 13.90 56 14 45 106
O3FD1400SE 14.00 56 14 45 106
O3FD1410SE 14.10 60 16 48 113
O3FD1420SE 14.20 60 16 48 113
O3FD1430SE 14.30 60 16 48 113
O3FD1440SE 14.40 60 16 48 113
O3FD1450SE 14.50 60 16 48 113
O3FD1460SE 14.60 60 16 48 113
O3FD1470SE 14.70 60 16 48 113
O3FD1480SE 14.80 60 16 48 113
O3FD1490SE 14.90 60 16 48 113
O3FD1500SE 15.00 60 16 48 113
O3FD1510SE 15.10 64 16 48 117
O3FD1520SE 15.20 64 16 48 117
O3FD1530SE 15.30 64 16 48 117
O3FD1540SE 15.40 64 16 48 117
O3FD1550SE 15.50 64 16 48 117
O3FD1560SE 15.60 64 16 48 117
O3FD1570SE 15.70 64 16 48 117
O3FD1580SE 15.80 64 16 48 117
O3FD1590SE 15.90 64 16 48 117
O3FD1600SE 16.00 64 16 48 117
O3FD1610SE 16.10 68 18 48 121
O3FD1620SE 16.20 68 18 48 121
O3FD1630SE 16.30 68 18 48 121
O3FD1640SE 16.40 68 18 48 121
O3FD1650SE 16.50 68 18 48 121
O3FD1660SE 16.60 68 18 48 121
O3FD1670SE 16.70 68 18 48 121
O3FD1680SE 16.80 68 18 48 121
O3FD1690SE 16.90 68 18 48 121
O3FD1700SE 17.00 68 18 48 121
O3FD1710SE 17.10 72 18 48 125
O3FD1720SE 17.20 72 18 48 125
O3FD1730SE 17.30 72 18 48 125
O3FD1740SE 17.40 72 18 48 125
O3FD1750SE 17.50 72 18 48 125
O3FD1760SE 17.60 72 18 48 125
O3FD1770SE 17.70 72 18 48 125
O3FD1780SE 17.80 72 18 48 125
O3FD1790SE 17.90 72 18 48 125
O3FD1800SE 18.00 72 18 48 125
O3FD1810SE 18.10 76 20 50 131
O3FD1820SE 18.20 76 20 50 131
O3FD1830SE 18.30 76 20 50 131
O3FD1840SE 18.40 76 20 50 131
O3FD1850SE 18.50 76 20 50 131
O3FD1860SE 18.60 76 20 50 131
O3FD1870SE 18.70 76 20 50 131
O3FD1880SE 18.80 76 20 50 131
O3FD1890SE 18.90 76 20 50 131
O3FD1900SE 19.00 76 20 50 131
O3FD1910SE 19.10 80 20 50 135
O3FD1920SE 19.20 80 20 50 135
O3FD1930SE 19.30 80 20 50 135
O3FD1940SE 19.40 80 20 50 135
O3FD1950SE 19.50 80 20 50 135
O3FD1960SE 19.60 80 20 50 135
O3FD1970SE 19.70 80 20 50 135
O3FD1980SE 19.80 80 20 50 135
O3FD1990SE 19.90 80 20 50 135
O3FD2000SE 20.00 80 20 50 135
