SMC 整体硬质合金四刃光面圆鼻铣刀（不等分割）--高性能型
刀具特点说明:
1、刀具尺寸按本公司标准制造，接受非标定制；
2、刃径公差为+0.02/0；圆角R公差为+0.02/-0.01；柄部尺寸公差为h6；
3、底刃均为对称刃设计，有刃倾角；
4、螺旋角度为36~37度；
6、加工面的光洁度高，特别是加工槽和侧面。
SMC 系列光面铣刀----不等分割，不等导程
产品特点:
□ 不等分割、不等距导程，通过连续变化外周刃的分割比例，有效抑制了周期性应力与细微的振动。
□ 针对加工材料的不同，和加工状况不同，设计不同的分割比例。
□ 加工时切削频率不固定，可以避免共振产生，降低振刀现象。
□ 加工表面光洁度好。
可加工材料:
|
系列 |
被切削材料 |
|
|||||||||||||
|
结构钢 |
碳素钢 |
合金钢 |
预硬化钢 |
调质钢、模具钢、高硬度钢 |
不锈钢 |
钛合金、 |
铸铁 |
铝合金 |
铜合金 |
树脂 |
|
||||
|
HRC30-45 |
HRC45-55 |
HRC55-60 |
>HRC60 |
||||||||||||
| STA |
◎ |
◎ |
◎ |
◎ |
○ |
○ |
|
|
○ |
○ |
◎ |
|
○ |
|
|
|
HTA |
◎ | ◎ | ◎ | ◎ | ◎ | ○ | ◎ | ○ | ◎ |
○ |
○ |
|
|||
可选类型和尺寸范围：
四刃平头光面铣刀UTM4：3.0~20.0mm 四刃光面圆鼻铣刀RUTM4：6.0~12.0mm
长径型四刃平头光面铣刀LUTM4：3.0~20.0mm 六刃平头光面铣刀UTM6：6.0~12.0mm

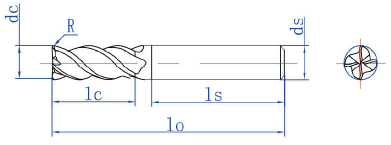

| 高性能型订货号 | 刃径 | 刃长 | 柄径 | 总长 | 刀尖角 |
| HTA系列（涂层） | dc | lc | ds | lo | R |
| RUTM4061503HTA | 6.0 | 15 | 6 | 50 | 0.3 |
| RUTM4061505HTA | 6.0 | 15 | 6 | 50 | 0.5 |
| RUTM4061510HTA | 6.0 | 15 | 6 | 50 | 1.0 |
| RUTM4062403HTA | 6.0 | 24 | 6 | 60 | 0.3 |
| RUTM4062405HTA | 6.0 | 24 | 6 | 60 | 0.5 |
| RUTM4062410HTA | 6.0 | 24 | 6 | 60 | 1.0 |
| RUTM4082003HTA | 8.0 | 20 | 8 | 60 | 0.3 |
| RUTM4082005HTA | 8.0 | 20 | 8 | 60 | 0.5 |
| RUTM4082010HTA | 8.0 | 20 | 8 | 60 | 1.0 |
| RUTM4083203HTA | 8.0 | 32 | 8 | 80 | 0.3 |
| RUTM4083205HTA | 8.0 | 32 | 8 | 80 | 0.5 |
| RUTM4083210HTA | 8.0 | 32 | 8 | 80 | 1.0 |
| RUTM4102503HTA | 10.0 | 25 | 10 | 70 | 0.3 |
| RUTM4102505HTA | 10.0 | 25 | 10 | 70 | 0.5 |
| RUTM4102510HTA | 10.0 | 25 | 10 | 70 | 1.0 |
| RUTM4102520HTA | 10.0 | 25 | 10 | 70 | 2.0 |
| RUTM4104003HTA | 10.0 | 40 | 10 | 90 | 0.3 |
| RUTM4104005HTA | 10.0 | 40 | 10 | 90 | 0.5 |
| RUTM4104010HTA | 10.0 | 40 | 10 | 90 | 1.0 |
| RUTM4104020HTA | 10.0 | 40 | 10 | 90 | 2.0 |
| RUTM4123005HTA | 12.0 | 30 | 12 | 75 | 0.5 |
| RUTM4123010HTA | 12.0 | 30 | 12 | 75 | 1.0 |
| RUTM4123020HTA | 12.0 | 30 | 12 | 75 | 2.0 |
| RUTM4123030HTA | 12.0 | 30 | 12 | 75 | 3.0 |
| RUTM4124805HTA | 12.0 | 48 | 12 | 100 | 0.5 |
| RUTM4124810HTA | 12.0 | 48 | 12 | 100 | 1.0 |
| RUTM4124820HTA | 12.0 | 48 | 12 | 100 | 2.0 |
| RUTM4124830HTA | 12.0 | 48 | 12 | 100 | 3.0 |
|
RUTM4143510HTA |
14.0 | 35 | 14 | 90 | 1 |
|
RUTM4143520HTA |
14.0 |
35 |
14 |
90 |
2 |
|
RUTM4143530HTA |
14.0 |
35 |
14 |
90 |
3 |
|
RUTM4145610HTA |
14.0 |
56 |
14 |
110 | 1 |
|
RUTM4145620HTA |
14.0 |
56 |
14 |
110 |
2 |
|
RUTM4145620HTA |
14.0 |
56 |
14 |
110 | 3 |
| RUTM4164030HTA | 16.0 | 40 | 16 | 90 | 1.0 |
| RUTM4164020HTA | 16.0 | 40 | 16 | 90 | 2.0 |
| RUTM4164030HTA | 16.0 | 40 | 16 | 90 | 3.0 |
| RUTM4166410HTA | 16.0 | 64 | 16 | 120 | 1.0 |
| RUTM4166420HTA | 16.0 | 64 | 16 | 120 | 2.0 |
| RUTM4166430HTA | 16.0 | 64 | 16 | 120 | 3.0 |
| RUTM4205010HTA | 20.0 | 50 | 20 | 100 | 1.0 |
| RUTM4205020HTA | 20.0 | 50 | 20 | 100 | 2.0 |
| RUTM4205030HTA | 20.0 | 50 | 20 | 100 | 3.0 |
| RUTM4208010HTA | 20.0 | 80 | 20 | 140 | 1.0 |
| RUTM4208020HTA | 20.0 | 80 | 20 | 140 | 2.0 |
| RUTM4208030HTA | 20.0 | 80 | 20 | 140 | 3.0 |
