FD铝合金加工用直槽钻头

O5FD-SA

FD 内冷整体硬质合金铝用直槽钻头5×D 基准型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为M7，柄部公差为H6。

3、刀尖顶角、刀尖形式、排屑槽均针对各系列的加工特点分别设计，确保达到最优的加工效果。

  • 产品特色
  • 产品尺寸
  • 加工视频

FD系列整硬直槽钻头

铝用无涂层/铸铁用有涂层



被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最适合  ○ 适合)




可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷



尺寸范围：

D=2.00~20.00mm

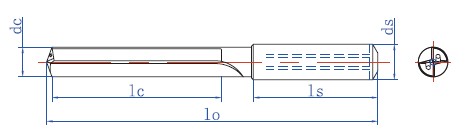

基准型订货号 刃径 槽长 柄径 柄长 总长
SA系列（铝用无涂层） dc  lc  ds  ls  lo
O5FD0300SA 3.00 24 4 28 57
O5FD0310SA 3.10 24 4 28 57
O5FD0320SA 3.20 24 4 28 57
O5FD0330SA 3.30 24 4 28 57
O5FD0340SA 3.40 24 4 28 57
O5FD0350SA 3.50 24 4 28 57
O5FD0360SA 3.60 24 4 28 57
O5FD0370SA 3.70 24 4 28 57
O5FD0380SA 3.80 24 4 28 57
O5FD0390SA 3.90 24 4 28 57
O5FD0400SA 4.00 24 4 28 57
O5FD0410SA 4.10 30 6 36 71
O5FD0420SA 4.20 30 6 36 71
O5FD0430SA 4.30 30 6 36 71
O5FD0440SA 4.40 30 6 36 71
O5FD0450SA 4.50 30 6 36 71
O5FD0460SA 4.60 30 6 36 71
O5FD0470SA 4.70 30 6 36 71
O5FD0480SA 4.80 30 6 36 71
O5FD0490SA 4.90 30 6 36 71
O5FD0500SA 5.00 30 6 36 71
O5FD0510SA 5.10 36 6 36 77
O5FD0520SA 5.20 36 6 36 77
O5FD0530SA 5.30 36 6 36 77
O5FD0540SA 5.40 36 6 36 77
O5FD0550SA 5.50 36 6 36 77
O5FD0560SA 5.60 36 6 36 77
O5FD0570SA 5.70 36 6 36 77
O5FD0580SA 5.80 36 6 36 77
O5FD0590SA 5.90 36 6 36 77
O5FD0600SA 6.00 36 6 36 77
O5FD0610SA 6.10 42 8 36 83
O5FD0620SA 6.20 42 8 36 83
O5FD0630SA 6.30 42 8 36 83
O5FD0640SA 6.40 42 8 36 83
O5FD0650SA 6.50 42 8 36 83
O5FD0660SA 6.60 42 8 36 83
O5FD0670SA 6.70 42 8 36 83
O5FD0680SA 6.80 42 8 36 83
O5FD0690SA 6.90 42 8 36 83
O5FD0700SA 7.00 42 8 36 83
O5FD0710SA 7.10 48 8 36 89
O5FD0720SA 7.20 48 8 36 89
O5FD0730SA 7.30 48 8 36 89
O5FD0740SA 7.40 48 8 36 89
O5FD0750SA 7.50 48 8 36 89
O5FD0760SA 7.60 48 8 36 89
O5FD0770SA 7.70 48 8 36 89
O5FD0780SA 7.80 48 8 36 89
O5FD0790SA 7.90 48 8 36 89
O5FD0800SA 8.00 48 8 36 89
O5FD0810SA 8.10 54 10 40 99
O5FD0820SA 8.20 54 10 40 99
O5FD0830SA 8.30 54 10 40 99
O5FD0840SA 8.40 54 10 40 99
O5FD0850SA 8.50 54 10 40 99
O5FD0860SA 8.60 54 10 40 99
O5FD0870SA 8.70 54 10 40 99
O5FD0880SA 8.80 54 10 40 99
O5FD0890SA 8.90 54 10 40 99
O5FD0900SA 9.00 54 10 40 99
O5FD0910SA 9.10 60 10 40 105
O5FD0920SA 9.20 60 10 40 105
O5FD0930SA 9.30 60 10 40 105
O5FD0940SA 9.40 60 10 40 105
O5FD0950SA 9.50 60 10 40 105
O5FD0960SA 9.60 60 10 40 105
O5FD0970SA 9.70 60 10 40 105
O5FD0980SA 9.80 60 10 40 105
O5FD0990SA 9.90 60 10 40 105
O5FD1000SA 10.00 60 10 40 105
O5FD1010SA 10.10 66 12 45 116
O5FD1020SA 10.20 66 12 45 116
O5FD1030SA 10.30 66 12 45 116
O5FD1040SA 10.40 66 12 45 116
O5FD1050SA 10.50 66 12 45 116
O5FD1060SA 10.60 66 12 45 116
O5FD1070SA 10.70 66 12 45 116
O5FD1080SA 10.80 66 12 45 116
O5FD1090SA 10.90 66 12 45 116
O5FD1100SA 11.00 66 12 45 116
O5FD1110SA 11.10 72 12 45 122
O5FD1120SA 11.20 72 12 45 122
O5FD1130SA 11.30 72 12 45 122
O5FD1140SA 11.40 72 12 45 122
O5FD1150SA 11.50 72 12 45 122
O5FD1160SA 11.60 72 12 45 122
O5FD1170SA 11.70 72 12 45 122
O5FD1180SA 11.80 72 12 45 122
O5FD1190SA 11.90 72 12 45 122
O5FD1200SA 12.00 72 12 45 122
O5FD1210SA 12.10 78 14 45 128
O5FD1220SA 12.20 78 14 45 128
O5FD1230SA 12.30 78 14 45 128
O5FD1240SA 12.40 78 14 45 128
O5FD1250SA 12.50 78 14 45 128
O5FD1260SA 12.60 78 14 45 128
O5FD1270SA 12.70 78 14 45 128
O5FD1280SA 12.80 78 14 45 128
O5FD1290SA 12.90 78 14 45 128
O5FD1300SA 13.00 78 14 45 128
O5FD1310SA 13.10 84 14 45 134
O5FD1320SA 13.20 84 14 45 134
O5FD1330SA 13.30 84 14 45 134
O5FD1340SA 13.40 84 14 45 134
O5FD1350SA 13.50 84 14 45 134
O5FD1360SA 13.60 84 14 45 134
O5FD1370SA 13.70 84 14 45 134
O5FD1380SA 13.80 84 14 45 134
O5FD1390SA 13.90 84 14 45 134
O5FD1400SA 14.00 84 14 45 134
O5FD1410SA 14.10 90 16 48 143
O5FD1420SA 14.20 90 16 48 143
O5FD1430SA 14.30 90 16 48 143
O5FD1440SA 14.40 90 16 48 143
O5FD1450SA 14.50 90 16 48 143
O5FD1460SA 14.60 90 16 48 143
O5FD1470SA 14.70 90 16 48 143
O5FD1480SA 14.80 90 16 48 143
O5FD1490SA 14.90 90 16 48 143
O5FD1500SA 15.00 90 16 48 143
O5FD1510SA 15.10 96 16 48 149
O5FD1520SA 15.20 96 16 48 149
O5FD1530SA 15.30 96 16 48 149
O5FD1540SA 15.40 96 16 48 149
O5FD1550SA 15.50 96 16 48 149
O5FD1560SA 15.60 96 16 48 149
O5FD1570SA 15.70 96 16 48 149
O5FD1580SA 15.80 96 16 48 149
O5FD1590SA 15.90 96 16 48 149
O5FD1600SA 16.00 96 16 48 149
O5FD1610SA 16.10 102 18 48 155
O5FD1620SA 16.20 102 18 48 155
O5FD1630SA 16.30 102 18 48 155
O5FD1640SA 16.40 102 18 48 155
O5FD1650SA 16.50 102 18 48 155
O5FD1660SA 16.60 102 18 48 155
O5FD1670SA 16.70 102 18 48 155
O5FD1680SA 16.80 102 18 48 155
O5FD1690SA 16.90 102 18 48 155
O5FD1700SA 17.00 102 18 48 155
O5FD1710SA 17.10 108 18 48 161
O5FD1720SA 17.20 108 18 48 161
O5FD1730SA 17.30 108 18 48 161
O5FD1740SA 17.40 108 18 48 161
O5FD1750SA 17.50 108 18 48 161
O5FD1760SA 17.60 108 18 48 161
O5FD1770SA 17.70 108 18 48 161
O5FD1780SA 17.80 108 18 48 161
O5FD1790SA 17.90 108 18 48 161
O5FD1800SA 18.00 108 18 48 161
O5FD1810SA 18.10 114 20 50 169
O5FD1820SA 18.20 114 20 50 169
O5FD1830SA 18.30 114 20 50 169
O5FD1840SA 18.40 114 20 50 169
O5FD1850SA 18.50 114 20 50 169
O5FD1860SA 18.60 114 20 50 169
O5FD1870SA 18.70 114 20 50 169
O5FD1880SA 18.80 114 20 50 169
O5FD1890SA 18.90 114 20 50 169
O5FD1900SA 19.00 114 20 50 169
O5FD1910SA 19.10 120 20 50 175
O5FD1920SA 19.20 120 20 50 175
O5FD1930SA 19.30 120 20 50 175
O5FD1940SA 19.40 120 20 50 175
O5FD1950SA 19.50 120 20 50 175
O5FD1960SA 19.60 120 20 50 175
O5FD1970SA 19.70 120 20 50 175
O5FD1980SA 19.80 120 20 50 175
O5FD1990SA 19.90 120 20 50 175
O5FD2000SA 20.00 120 20 50 175
