SD整硬螺旋槽钻头--SE基准型

7SD-SE

SD 整体硬质合金螺旋槽钻头7×D 基准型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为m7，柄部公差为h6。

3、刀尖顶角、刀尖形式、排屑槽形式、涂层等要素针对各系列特点进行分别设计，确保各系列达到最优的加工效果。



  • 产品特色
  • 产品尺寸
  • 加工视频

HE/SE 系列高性能整硬钻 头

适合高速加工


产品特点:

□ 优异的钻尖形式

   容屑槽是圆弧过度，增加了钻尖的强度，后角是铲磨成圆弧，并配合良好的钝化工艺。

□ 采用铣刀柄式设计

    采用铣刀相同的柄部形式，实现高精度钻孔。

加工案例:

□ 切削条件

被加工材料: 合金钢SCM440
 钻头直径:  8.0mm
切削速度: 100m / min
 进给量:  1200mm / mi
冷却方式: Emulsion
 涂层:  HE 涂层

□ 加工寿命比较




被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

HE

◎

◎

◎

◎

◎

◎

◎

○

○

○



SE

◎

◎

◎

◎

◎

○

○

○

○

(◎ 最适合  ○ 适合)



可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷  /  7XD  /  7XD 内冷



尺寸范围：

D=2.00~20.00mm

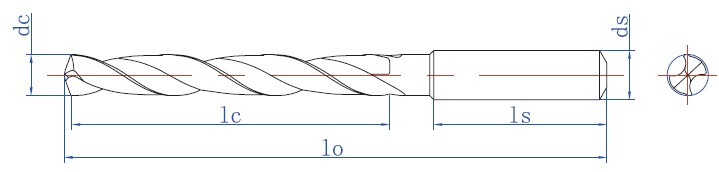

基准型订货号 刃径 槽长 柄径 柄长 总长
SE系列（通用有涂层） dc  lc  ds  ls  lo
7SD0200SE 2 20 3 28 51
7SD0210SE 2.1 20 3 28 51
7SD0220SE 2.2 20 3 28 51
7SD0230SE 2.3 20 3 28 51
7SD0240SE 2.4 20 3 28 51
7SD0250SE 2.5 20 3 28 51
7SD0260SE 2.6 26 3 28 57
7SD0270SE 2.7 26 3 28 57
7SD0280SE 2.8 26 3 28 57
7SD0300SE 3 26 3 28 57
7SD0310SE 3.1 34 4 28 67
7SD0320SE 3.2 34 4 28 67
7SD0330SE 3.3 34 4 28 67
7SD0340SE 3.4 34 4 28 67
7SD0350SE 3.5 34 4 28 67
7SD0360SE 3.6 34 4 28 67
7SD0370SE 3.7 34 4 28 67
7SD0380SE 3.8 34 4 28 67
7SD0390SE 3.9 34 4 28 67
7SD0400SE 4 34 4 28 67
7SD0410SE 4.1 47 6 36 88
7SD0420SE 4.2 47 6 36 88
7SD0430SE 4.3 47 6 36 88
7SD0440SE 4.4 47 6 36 88
7SD0450SE 4.5 47 6 36 88
7SD0460SE 4.6 47 6 36 88
7SD0470SE 4.7 47 6 36 88
7SD0480SE 4.8 47 6 36 88
7SD0490SE 4.9 47 6 36 88
7SD0500SE 5 47 6 36 88
7SD0510SE 5.1 51 6 36 92
7SD0520SE 5.2 51 6 36 92
7SD0530SE 5.3 51 6 36 92
7SD0540SE 5.4 51 6 36 92
7SD0550SE 5.5 51 6 36 92
7SD0560SE 5.6 51 6 36 92
7SD0570SE 5.7 51 6 36 92
7SD0580SE 5.8 51 6 36 92
7SD0590SE 5.9 51 6 36 92
7SD0600SE 6 51 6 36 92
7SD0610SE 6.1 64 8 36 105
7SD0620SE 6.2 64 8 36 105
7SD0630SE 6.3 64 8 36 105
7SD0640SE 6.4 64 8 36 105
7SD0650SE 6.5 64 8 36 105
7SD0660SE 6.6 64 8 36 105
7SD0670SE 6.7 64 8 36 105
7SD0680SE 6.8 64 8 36 105
7SD0690SE 6.9 64 8 36 105
7SD0700SE 7 64 8 36 105
7SD0710SE 7.1 68 8 36 109
7SD0720SE 7.2 68 8 36 109
7SD0730SE 7.3 68 8 36 109
7SD0740SE 7.4 68 8 36 109
7SD0750SE 7.5 68 8 36 109
7SD0760SE 7.6 68 8 36 109
7SD0770SE 7.7 68 8 36 109
7SD0780SE 7.8 68 8 36 109
7SD0790SE 7.9 68 8 36 109
7SD0800SE 8 68 8 36 109
7SD0810SE 8.1 81 10 40 126
7SD0820SE 8.2 81 10 40 126
7SD0830SE 8.3 81 10 40 126
7SD0840SE 8.4 81 10 40 126
7SD0850SE 8.5 81 10 40 126
7SD0860SE 8.6 81 10 40 126
7SD0870SE 8.7 81 10 40 126
7SD0880SE 8.8 81 10 40 126
7SD0890SE 8.9 81 10 40 126
7SD0900SE 9 81 10 40 126
7SD0910SE 9.1 85 10 40 130
7SD0920SE 9.2 85 10 40 130
7SD0930SE 9.3 85 10 40 130
7SD0940SE 9.4 85 10 40 130
7SD0950SE 9.5 85 10 40 130
7SD0960SE 9.6 85 10 40 130
7SD0970SE 9.7 85 10 40 130
7SD0980SE 9.8 85 10 40 130
7SD0990SE 9.9 85 10 40 130
7SD1000SE 10 85 10 40 130
7SD1010SE 10.1 98 12 45 148
7SD1020SE 10.2 98 12 45 148
7SD1030SE 10.3 98 12 45 148
7SD1040SE 10.4 98 12 45 148
7SD1050SE 10.5 98 12 45 148
7SD1060SE 10.6 98 12 45 148
7SD1070SE 10.7 98 12 45 148
7SD1080SE 10.8 98 12 45 148
7SD1090SE 10.9 98 12 45 148
7SD1100SE 11 98 12 45 148
7SD1110SE 11.1 102 12 45 152
7SD1120SE 11.2 102 12 45 152
7SD1130SE 11.3 102 12 45 152
7SD1140SE 11.4 102 12 45 152
7SD1150SE 11.5 102 12 45 152
7SD1160SE 11.6 102 12 45 152
7SD1170SE 11.7 102 12 45 152
7SD1180SE 11.8 102 12 45 152
7SD1190SE 11.9 102 12 45 152
7SD1200SE 12 102 12 45 152
7SD1210SE 12.1 115 14 45 165
7SD1220SE 12.2 115 14 45 165
7SD1230SE 12.3 115 14 45 165
7SD1240SE 12.4 115 14 45 165
7SD1250SE 12.5 115 14 45 165
7SD1260SE 12.6 115 14 45 165
7SD1270SE 12.7 115 14 45 165
7SD1280SE 12.8 115 14 45 165
7SD1290SE 12.9 115 14 45 165
7SD1300SE 13 115 14 45 165
7SD1310SE 13.1 119 14 45 169
7SD1320SE 13.2 119 14 45 169
7SD1330SE 13.3 119 14 45 169
7SD1340SE 13.4 119 14 45 169
7SD1350SE 13.5 119 14 45 169
7SD1360SE 13.6 119 14 45 169
7SD1370SE 13.7 119 14 45 169
7SD1380SE 13.8 119 14 45 169
7SD1390SE 13.9 119 14 45 169
7SD1400SE 14 119 14 45 169
7SD1410SE 14.1 132 16 48 185
7SD1420SE 14.2 132 16 48 185
7SD1430SE 14.3 132 16 48 185
7SD1440SE 14.4 132 16 48 185
7SD1450SE 14.5 132 16 48 185
7SD1460SE 14.6 132 16 48 185
7SD1470SE 14.7 132 16 48 185
7SD1480SE 14.8 132 16 48 185
7SD1490SE 14.9 132 16 48 185
7SD1500SE 15 132 16 48 185
7SD1510SE 15.1 136 16 48 189
7SD1520SE 15.2 136 16 48 189
7SD1530SE 15.3 136 16 48 189
7SD1540SE 15.4 136 16 48 189
7SD1550SE 15.5 136 16 48 189
7SD1560SE 15.6 136 16 48 189
7SD1570SE 15.7 136 16 48 189
7SD1580SE 15.8 136 16 48 189
7SD1590SE 15.9 136 16 48 189
7SD1600SE 16 136 16 48 189
7SD1610SE 16.1 149 18 48 202
7SD1620SE 16.2 149 18 48 202
7SD1630SE 16.3 149 18 48 202
7SD1640SE 16.4 149 18 48 202
7SD1650SE 16.5 149 18 48 202
7SD1660SE 16.6 149 18 48 202
7SD1670SE 16.7 149 18 48 202
7SD1680SE 16.8 149 18 48 202
7SD1690SE 16.9 149 18 48 202
7SD1700SE 17 149 18 48 202
7SD1710SE 17.1 153 18 48 206
7SD1720SE 17.2 153 18 48 206
7SD1730SE 17.3 153 18 48 206
7SD1740SE 17.4 153 18 48 206
7SD1750SE 17.5 153 18 48 206
7SD1760SE 17.6 153 18 48 206
7SD1770SE 17.7 153 18 48 206
7SD1780SE 17.8 153 18 48 206
7SD1790SE 17.9 153 18 48 206
7SD1800SE 18 153 18 48 206
7SD1850SE 18.5 166 20 50 221
7SD1860SE 18.6 166 20 50 221
7SD1870SE 18.7 166 20 50 221
7SD1880SE 18.8 166 20 50 221
7SD1890SE 18.9 166 20 50 221
7SD1900SE 19 166 20 50 221
7SD1910SE 19.1 170 20 50 225
7SD1920SE 19.2 170 20 50 225
7SD1930SE 19.3 170 20 50 225
7SD1940SE 19.4 170 20 50 225
7SD1950SE 19.5 170 20 50 225
7SD1960SE 19.6 170 20 50 225
7SD1970SE 19.7 170 20 50 225
7SD1980SE 19.8 170 20 50 225
7SD1990SE 19.9 170 20 50 225
7SD2000SE 20 170 20 50 225
