SD整硬螺旋槽钻头--SE基准型

5SD-SE

SD 整体硬质合金螺旋槽钻头5×D 基准型

刀具特点说明:

1、刀具尺寸按本公司标准制造，接受非标定制。

2、刃径公差为m7，柄部公差为h6。

3、刀尖顶角、刀尖形式、排屑槽形式、涂层等要素针对各系列特点进行分别设计，确保各系列达到最优的加工效果。



  • 产品特色
  • 产品尺寸
  • 加工视频

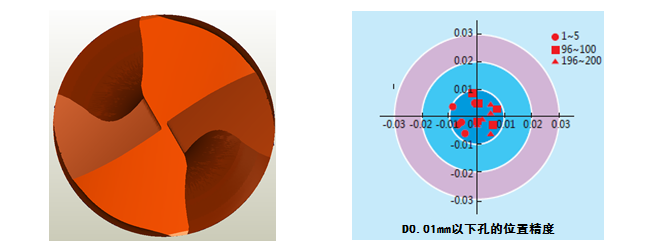

HE/SE 系列高性能整硬钻 头

适合高速加工


产品特点:

□ 优异的钻尖形式

   容屑槽是圆弧过度，增加了钻尖的强度，后角是铲磨成圆弧，并配合良好的钝化工艺。

□ 采用铣刀柄式设计

    采用铣刀相同的柄部形式，实现高精度钻孔。

加工案例:

□ 切削条件

被加工材料: 合金钢SCM440
 钻头直径:  8.0mm
切削速度: 100m / min
 进给量:  1200mm / mi
冷却方式: Emulsion
 涂层:  HE 涂层

□ 加工寿命比较




被切削材料:

系列

被切削材料



结构钢

碳素钢

合金钢

预硬化钢

调质钢、模具钢、高硬度钢

不锈钢

钛合金、
耐热合金

铸铁

铝合金

铜合金

树脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

HE

◎

◎

◎

◎

◎

◎

◎

○

○

○



SE

◎

◎

◎

◎

◎

○

○

○

○

(◎ 最适合  ○ 适合)



可选类型：

3XD  /  3XD 内冷  /  5XD  /  5XD 内冷  /  7XD  /  7XD 内冷



尺寸范围：

D=2.00~20.00mm



基准型订货号 刃径 槽长 柄径 柄长 总长
SE系列（通用有涂层） dc  lc  ds  ls  lo
5SD0200SE 2 15 3 28 46
5SD0210SE 2.1 15 3 28 46
5SD0220SE 2.2 15 3 28 46
5SD0230SE 2.3 15 3 28 46
5SD0240SE 2.4 15 3 28 46
5SD0250SE 2.5 15 3 28 46
5SD0260SE 2.6 20 3 28 51
5SD0270SE 2.7 20 3 28 51
5SD0280SE 2.8 20 3 28 51
5SD0290SE 2.9 20 3 28 51
5SD0300SE 3 20 3 28 51
5SD0310SE 3.1 26 4 28 59
5SD0320SE 3.2 26 4 28 59
5SD0330SE 3.3 26 4 28 59
5SD0340SE 3.4 26 4 28 59
5SD0350SE 3.5 26 4 28 59
5SD0360SE 3.6 26 4 28 59
5SD0370SE 3.7 26 4 28 59
5SD0380SE 3.8 26 4 28 59
5SD0390SE 3.9 26 4 28 59
5SD0400SE 4 26 4 28 59
5SD0410SE 4.1 35 6 36 76
5SD0420SE 4.2 35 6 36 76
5SD0430SE 4.3 35 6 36 76
5SD0440SE 4.4 35 6 36 76
5SD0450SE 4.5 35 6 36 76
5SD0460SE 4.6 35 6 36 76
5SD0470SE 4.7 35 6 36 76
5SD0480SE 4.8 35 6 36 76
5SD0490SE 4.9 35 6 36 76
5SD0500SE 5 35 6 36 76
5SD0510SE 5.1 39 6 36 80
5SD0520SE 5.2 39 6 36 80
5SD0530SE 5.3 39 6 36 80
5SD0540SE 5.4 39 6 36 80
5SD0550SE 5.5 39 6 36 80
5SD0560SE 5.6 39 6 36 80
5SD0570SE 5.7 39 6 36 80
5SD0580SE 5.8 39 6 36 80
5SD0590SE 5.9 39 6 36 80
5SD0600SE 6 39 6 36 80
5SD0610SE 6.1 48 8 36 89
5SD0620SE 6.2 48 8 36 89
5SD0630SE 6.3 48 8 36 89
5SD0640SE 6.4 48 8 36 89
5SD0650SE 6.5 48 8 36 89
5SD0660SE 6.6 48 8 36 89
5SD0670SE 6.7 48 8 36 89
5SD0680SE 6.8 48 8 36 89
5SD0690SE 6.9 48 8 36 89
5SD0700SE 7 48 8 36 89
5SD0710SE 7.1 52 8 36 93
5SD0720SE 7.2 52 8 36 93
5SD0730SE 7.3 52 8 36 93
5SD0740SE 7.4 52 8 36 93
5SD0750SE 7.5 52 8 36 93
5SD0760SE 7.6 52 8 36 93
5SD0770SE 7.7 52 8 36 93
5SD0780SE 7.8 52 8 36 93
5SD0790SE 7.9 52 8 36 93
5SD0800SE 8 52 8 36 93
5SD0810SE 8.1 61 10 40 106
5SD0820SE 8.2 61 10 40 106
5SD0830SE 8.3 61 10 40 106
5SD0840SE 8.4 61 10 40 106
5SD0850SE 8.5 61 10 40 106
5SD0860SE 8.6 61 10 40 106
5SD0870SE 8.7 61 10 40 106
5SD0880SE 8.8 61 10 40 106
5SD0890SE 8.9 61 10 40 106
5SD0900SE 9 61 10 40 106
5SD0910SE 9.1 65 10 40 110
5SD0920SE 9.2 65 10 40 110
5SD0930SE 9.3 65 10 40 110
5SD0940SE 9.4 65 10 40 110
5SD0950SE 9.5 65 10 40 110
5SD0960SE 9.6 65 10 40 110
5SD0970SE 9.7 65 10 40 110
5SD0980SE 9.8 65 10 40 110
5SD0990SE 9.9 65 10 40 110
5SD1000SE 10 65 10 40 110
5SD1010SE 10.1 74 12 45 124
5SD1020SE 10.2 74 12 45 124
5SD1030SE 10.3 74 12 45 124
5SD1040SE 10.4 74 12 45 124
5SD1050SE 10.5 74 12 45 124
5SD1060SE 10.6 74 12 45 124
5SD1070SE 10.7 74 12 45 124
5SD1080SE 10.8 74 12 45 124
5SD1090SE 10.9 74 12 45 124
5SD1100SE 11 74 12 45 124
5SD1110SE 11.1 78 12 45 128
5SD1120SE 11.2 78 12 45 128
5SD1130SE 11.3 78 12 45 128
5SD1140SE 11.4 78 12 45 128
5SD1150SE 11.5 78 12 45 128
5SD1160SE 11.6 78 12 45 128
5SD1170SE 11.7 78 12 45 128
5SD1180SE 11.8 78 12 45 128
5SD1190SE 11.9 78 12 45 128
5SD1200SE 12 78 12 45 128
5SD1210SE 12.1 87 14 45 137
5SD1220SE 12.2 87 14 45 137
5SD1230SE 12.3 87 14 45 137
5SD1240SE 12.4 87 14 45 137
5SD1250SE 12.5 87 14 45 137
5SD1260SE 12.6 87 14 45 137
5SD1270SE 12.7 87 14 45 137
5SD1280SE 12.8 87 14 45 137
5SD1290SE 12.9 87 14 45 137
5SD1300SE 13 87 14 45 137
5SD1310SE 13.1 91 14 45 141
5SD1320SE 13.2 91 14 45 141
5SD1330SE 13.3 91 14 45 141
5SD1340SE 13.4 91 14 45 141
5SD1350SE 13.5 91 14 45 141
5SD1360SE 13.6 91 14 45 141
5SD1370SE 13.7 91 14 45 141
5SD1380SE 13.8 91 14 45 141
5SD1390SE 13.9 91 14 45 141
5SD1400SE 14 91 14 45 141
5SD1410SE 14.1 100 16 48 153
5SD1420SE 14.2 100 16 48 153
5SD1430SE 14.3 100 16 48 153
5SD1440SE 14.4 100 16 48 153
5SD1450SE 14.5 100 16 48 153
5SD1460SE 14.6 100 16 48 153
5SD1470SE 14.7 100 16 48 153
5SD1480SE 14.8 100 16 48 153
5SD1490SE 14.9 100 16 48 153
5SD1500SE 15 100 16 48 153
5SD1510SE 15.1 104 16 48 157
5SD1520SE 15.2 104 16 48 157
5SD1530SE 15.3 104 16 48 157
5SD1540SE 15.4 104 16 48 157
5SD1550SE 15.5 104 16 48 157
5SD1560SE 15.6 104 16 48 157
5SD1570SE 15.7 104 16 48 157
5SD1580SE 15.8 104 16 48 157
5SD1590SE 15.9 104 16 48 157
5SD1600SE 16 104 16 48 157
5SD1610SE 16.1 113 18 48 166
5SD1620SE 16.2 113 18 48 166
5SD1630SE 16.3 113 18 48 166
5SD1640SE 16.4 113 18 48 166
5SD1650SE 16.5 113 18 48 166
5SD1660SE 16.6 113 18 48 166
5SD1670SE 16.7 113 18 48 166
5SD1680SE 16.8 113 18 48 166
5SD1690SE 16.9 113 18 48 166
5SD1700SE 17 113 18 48 166
5SD1710SE 17.1 117 18 48 170
5SD1720SE 17.2 117 18 48 170
5SD1730SE 17.3 117 18 48 170
5SD1740SE 17.4 117 18 48 170
5SD1750SE 17.5 117 18 48 170
5SD1760SE 17.6 117 18 48 170
5SD1770SE 17.7 117 18 48 170
5SD1780SE 17.8 117 18 48 170
5SD1790SE 17.9 117 18 48 170
5SD1800SE 18 117 18 48 170
5SD1810SE 18.1 126 20 50 181
5SD1820SE 18.2 126 20 50 181
5SD1830SE 18.3 126 20 50 181
5SD1840SE 18.4 126 20 50 181
5SD1850SE 18.5 126 20 50 181
5SD1860SE 18.6 126 20 50 181
5SD1870SE 18.7 126 20 50 181
5SD1880SE 18.8 126 20 50 181
5SD1890SE 18.9 126 20 50 181
5SD1900SE 19 126 20 50 181
5SD1910SE 19.1 130 20 50 185
5SD1920SE 19.2 130 20 50 185
5SD1930SE 19.3 130 20 50 185
5SD1940SE 19.4 130 20 50 185
5SD1950SE 19.5 130 20 50 185
5SD1970SE 19.7 130 20 50 185
5SD1980SE 19.8 130 20 50 185
5SD1990SE 19.9 130 20 50 185
5SD2000SE 20 130 20 50 185
